One tube receiver (T473E)

Details
Written by: Newton C. Braga

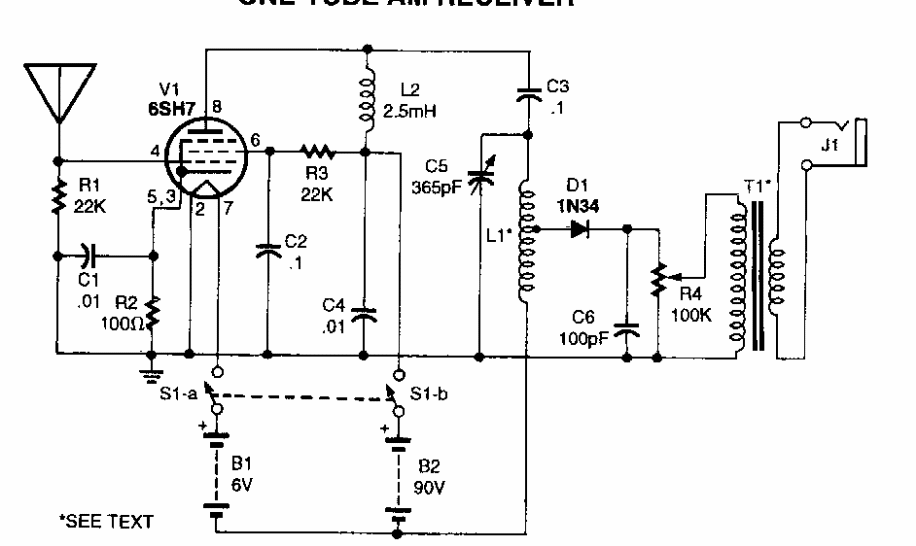

This receiver was found in a Popular Electronics from the 90's. Its different configuration shows a tuning circuit after the tube that works as an aperiodic amplifier. Observe supply voltages.




| Clique na imagem para ampliar |
