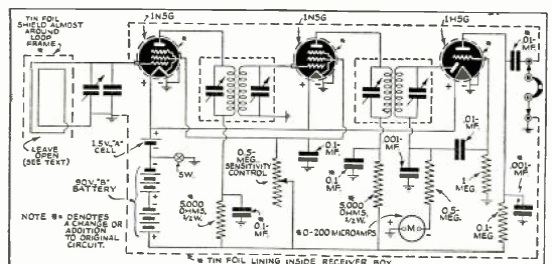

Published as a treasure finder in Radio Craft April 1940 this circuit is powered by two batteries and has 3 tubes. The principle is that of beating between two oscillators, with common IF coils and a sensor coil. Listening is through headphones. Adjustment is critical, requiring experience from the assembler.
