Simple 1-tube receiver (T960E)

Details
Written by: Newton C. Braga

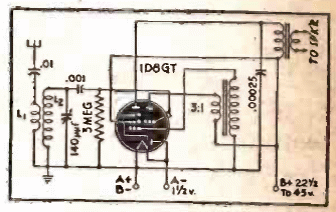

This 1V heater tube circuit was found on a Radio Craft from 1945. The circuit is for medium wave and can be used as a tuner.
