Signal Tracer (T1006E)

Details
Written by: Newton C. Braga

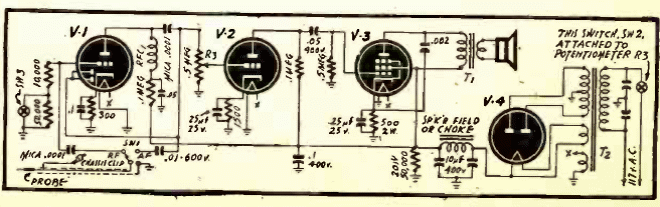

This 4-tube circuit was found on a Radio Craft from December 1945. The circuit has excellent sensitivity. Power comes from a power supply with a transformer.
