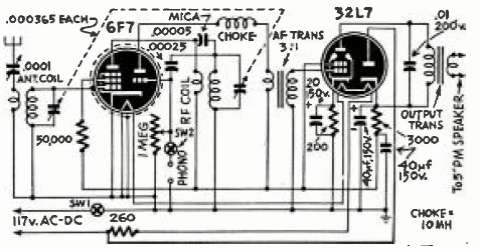

This receiver was found in a documentation from 1946. The circuit has speaker output and is powered directly by the power grid. The tuned band depends on the coils, being indicates the medium waves.
2 Tube Receiver (T1034E)
- Details
- Written by: Newton C. Braga
