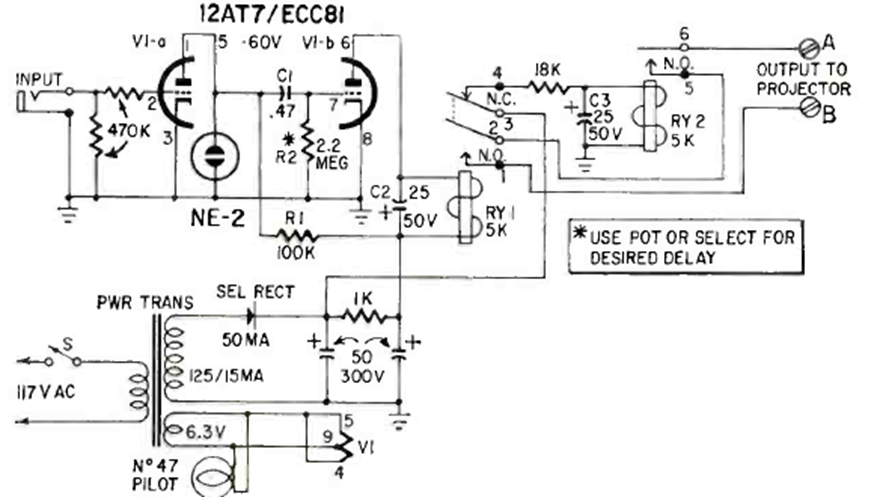

Originally designed to control a slide projector, this circuit was found in a Radio Electronics from June 1964. The circuit uses a double tube and drives a high voltage relay. The high voltage source included. The magazine includes a description of the assembly.
