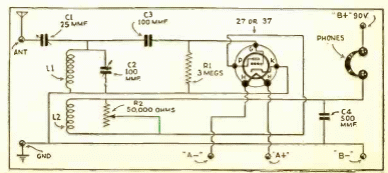

This circuit is from the 30's but famous until the 40's and after for its simplicity. The waveband depends on the coils. The circuit is regenerative requiring high impedance headphones for listening. The supply voltages can be between 45 and 90 V for the +B and filament, depending on the tube used.
