Ripple filter (CB6734E)

Details
Written by: Newton C. Braga

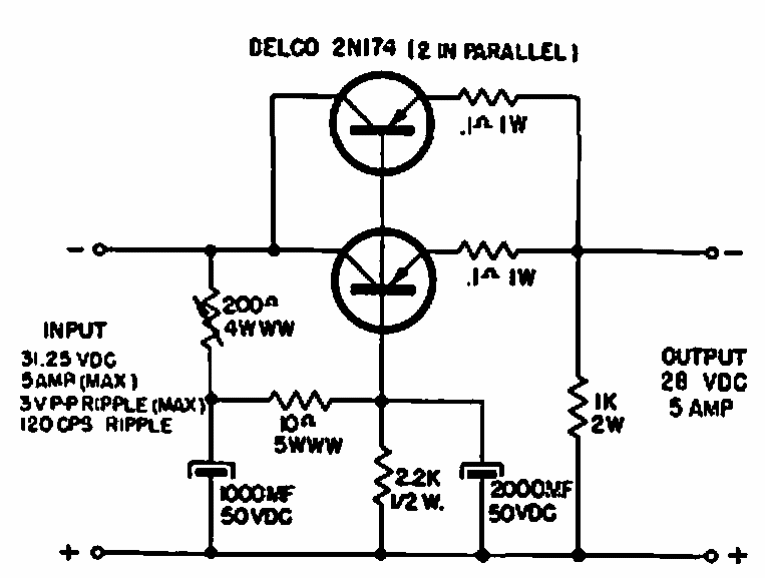

    This filter was found in Delco's 1965 documentation. It can be implemented with modern components according to the voltage and current to be regulated.
