Balance Control (CB6310E)

Details
Written by: Newton C. Braga

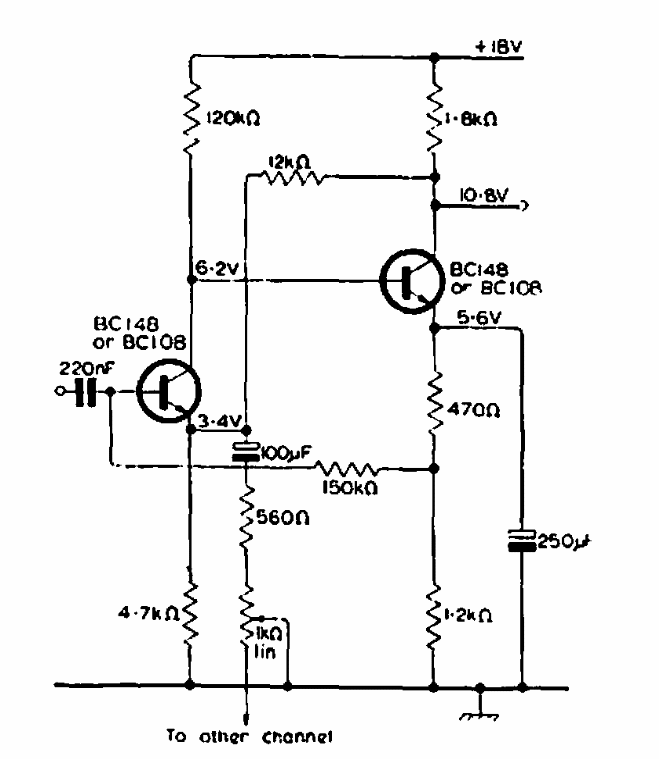

     This balance control for the channels of a stereo system was found in a 1969 Mullard documentation. The transistors may be the modern BC548 equivalents.
