Low Current Flasher (CB6257E)

Details
Written by: Newton C. Braga

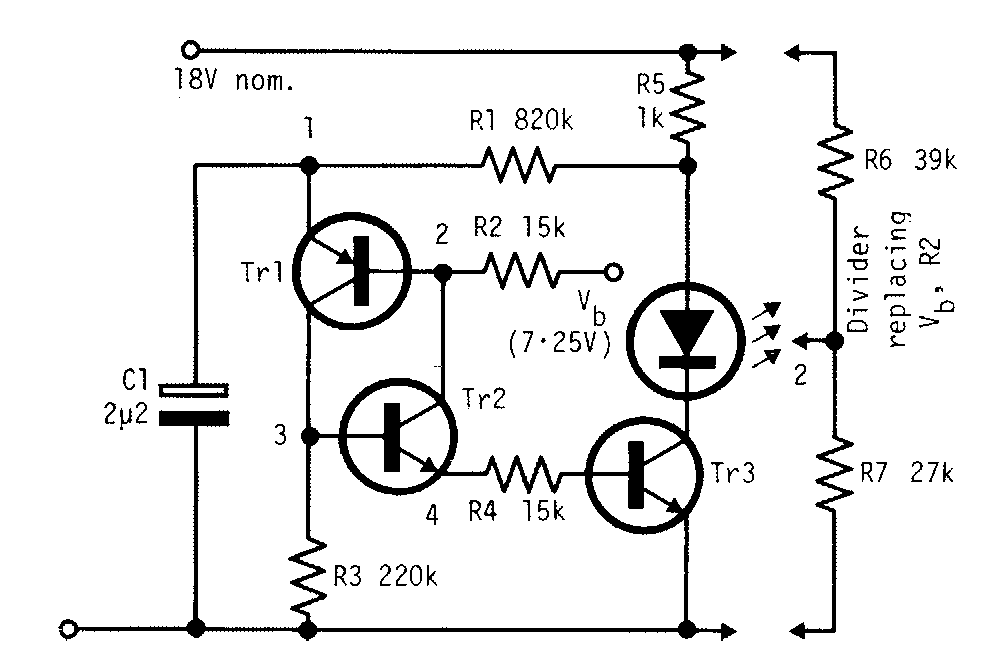

    This flasher was found in an 80's Electronic Engineering but can be easily implemented with modern general purpose transistors. The frequency depends on C1.






| Clique na imagem para ampliar |
