Light controller (CB7049E)

Details
Written by: Newton C. Braga

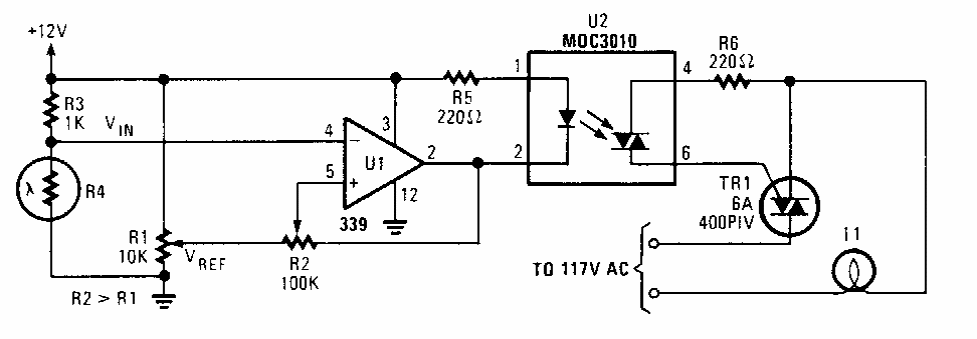

     Found in an old Popular Electronics this circuit can also be adapted to be used as a shield. In this version the control can trigger loads from the light that falls on an LDR.
