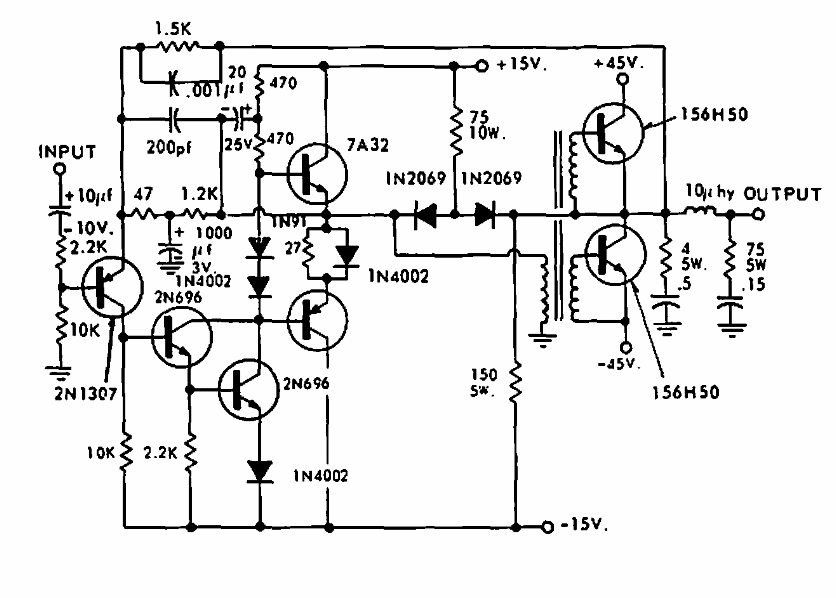

100 W Amplifier (CB6279E)

Details
Written by: Newton C. Braga



     This is one of the channels of an amplifier suggested by Westinghouse in 1970s documentation. The circuit uses components from the era and no information about the transformer is given.




| Clique na imagem para ampliar |
