Short-wave converter (CB7322E)

Details
Written by: Newton C. Braga

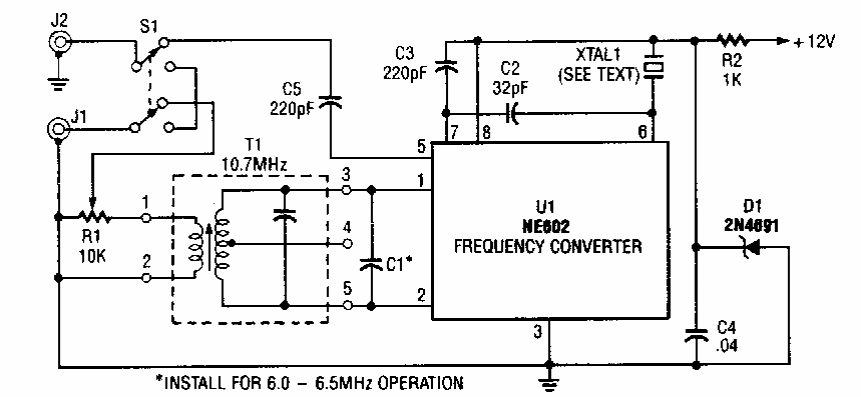

     Suggested by a 1990 book for amateurs, this circuit makes use of an integrated component that is not common today. It converts signals from one band to signals in a 10.7 MHz band below.
