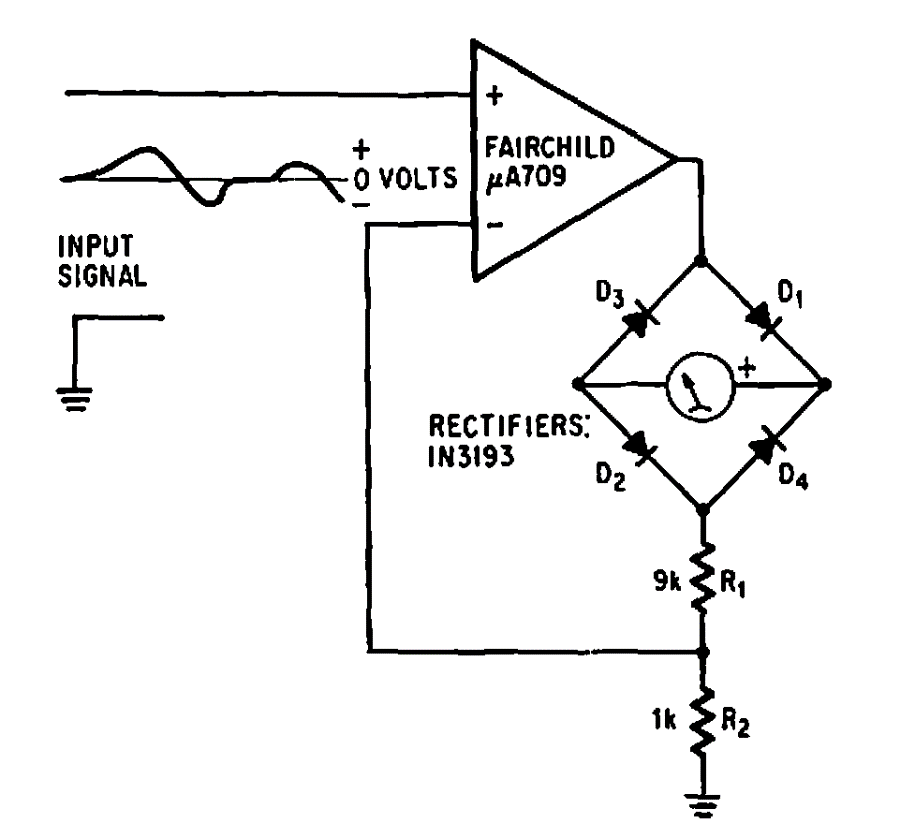

Found in a 1968 US publication, this circuit is designed to measure very weak signals. The operational amplifier of the time can be replaced by current equivalents. The power supply must be symmetrical.
| Clique na imagem para ampliar |
Weak Signals Sensor (CB6409E)
- Details
- Written by: Newton C. Braga
