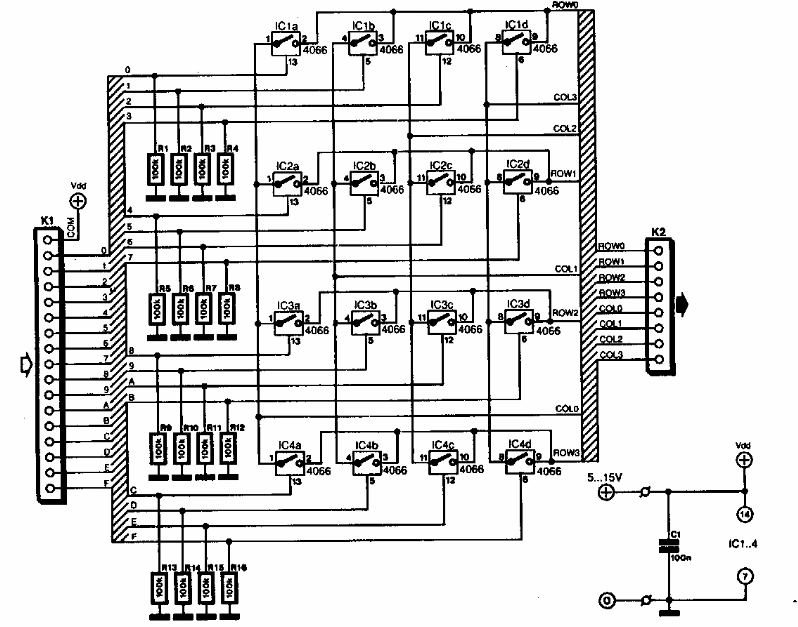

Matrix keyboard shield (CB7034E)

Details
Written by: Newton C. Braga



     Found in European documentation from the 1980s, this circuit was originally designed for computer applications of the time. However, the basic idea can be adapted for use with microcontrollers.
