Chaser 40174 (CB7048E)

Details
Written by: Newton C. Braga

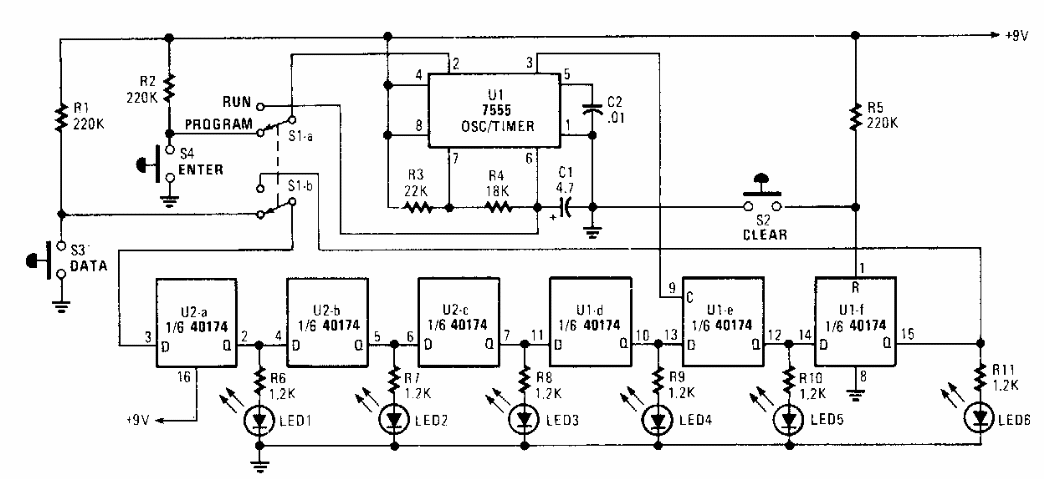

    This sequential circuit of LEDs was found in a Popular Electronics from the 90s. The circuit can be programmed and an adaptation consists of using optical couplers to drive power loads.
