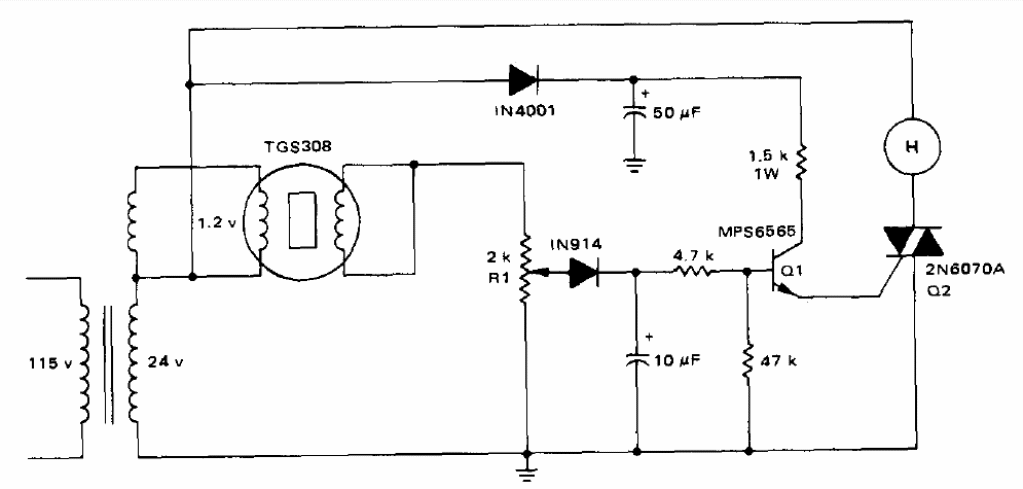

The critical component of this alarm, obtained in an old publication from 1976, is the sensor. The Triac can be any of the TIC series and the transistor can be a BC548. The adjustment pot can be 2k2. The transformer has 1 A of secondary current and an additional 1.2 V winding.
