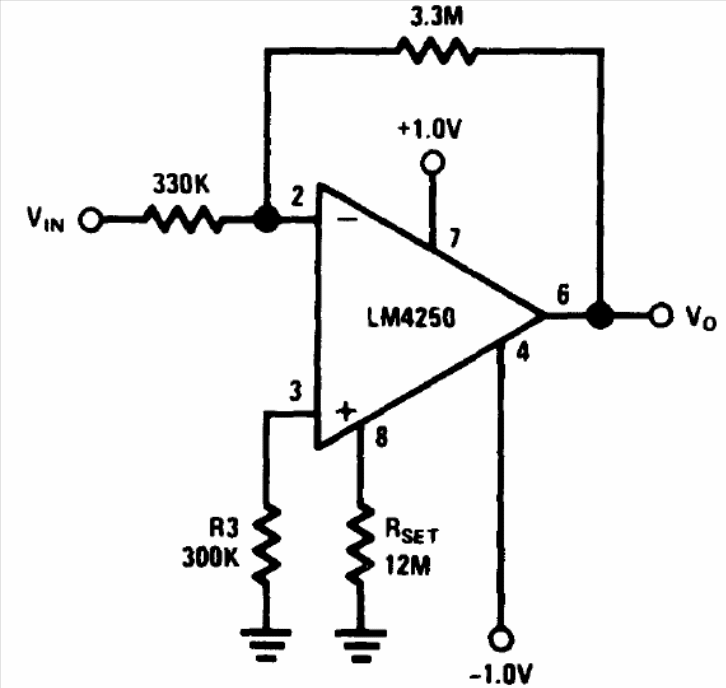

This circuit, suggested by the Linear Applications Handbook of National Semiconductor, uses a very low voltage operating system, presenting a voltage gain 10. The circuit can be powered by a symmetrical power source of only 1 V.
