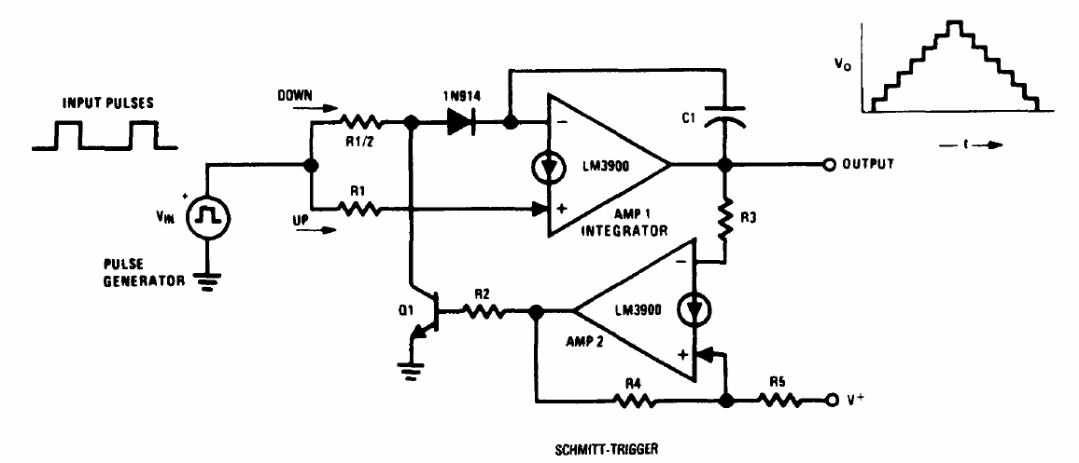

The circuit shown was found in the National Semiconductor Linear Applications Handbook of 1994. The Base is an LM3900 operational transconductance amplifier. The circuit requires a symmetrical power supply.
| Clique na imagem para ampliar |
Stair Generator Up and Down LM3900 (CB14197E)
- Details
- Written by: Newton C. Braga
