Video Amplifier LM359 (CB14371E)

Details
Written by: Newton C. Braga

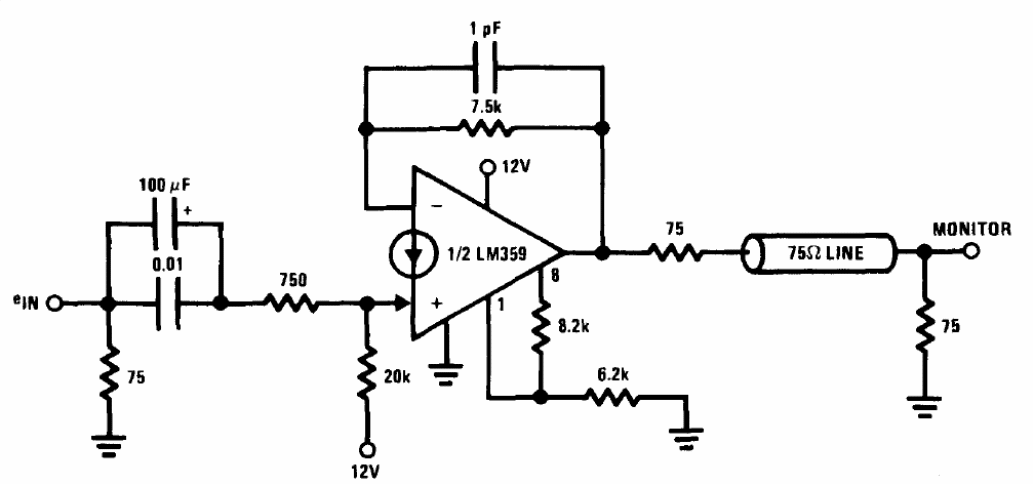

The circuit uses a fast Norton amplifier in a configuration that excites a 75 ohms line. The circuit is suggested by National's 1994 Linear Applications Handbook.
