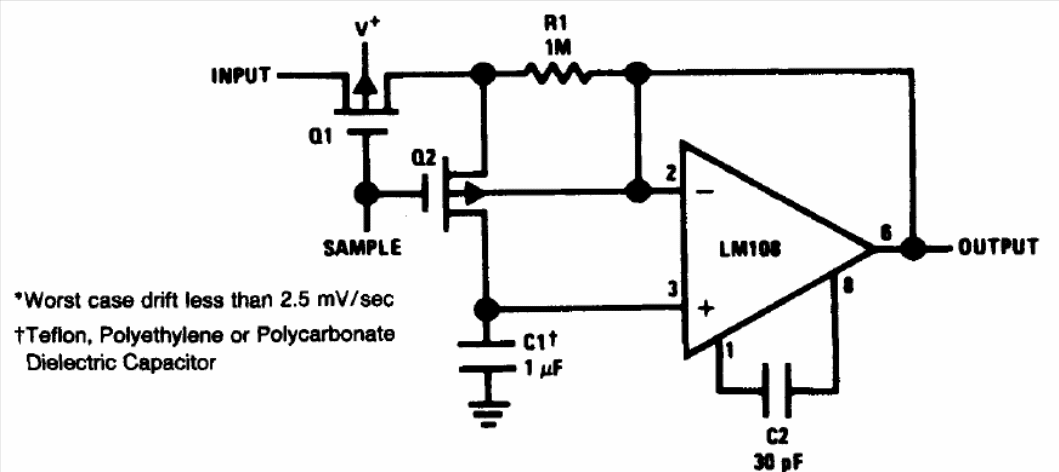

The sample and hold circuit used in analog to digital converters shown below was found in the National Semiconductor's Linear Applications Handbook of 1994. The operating circuit can be the most modern equivalent type and the symmetric power supply.
| Clique na imagem para ampliar |
