Amplifier 100 plus 100 V (CB15799E)

Details
Written by: Newton C. Braga

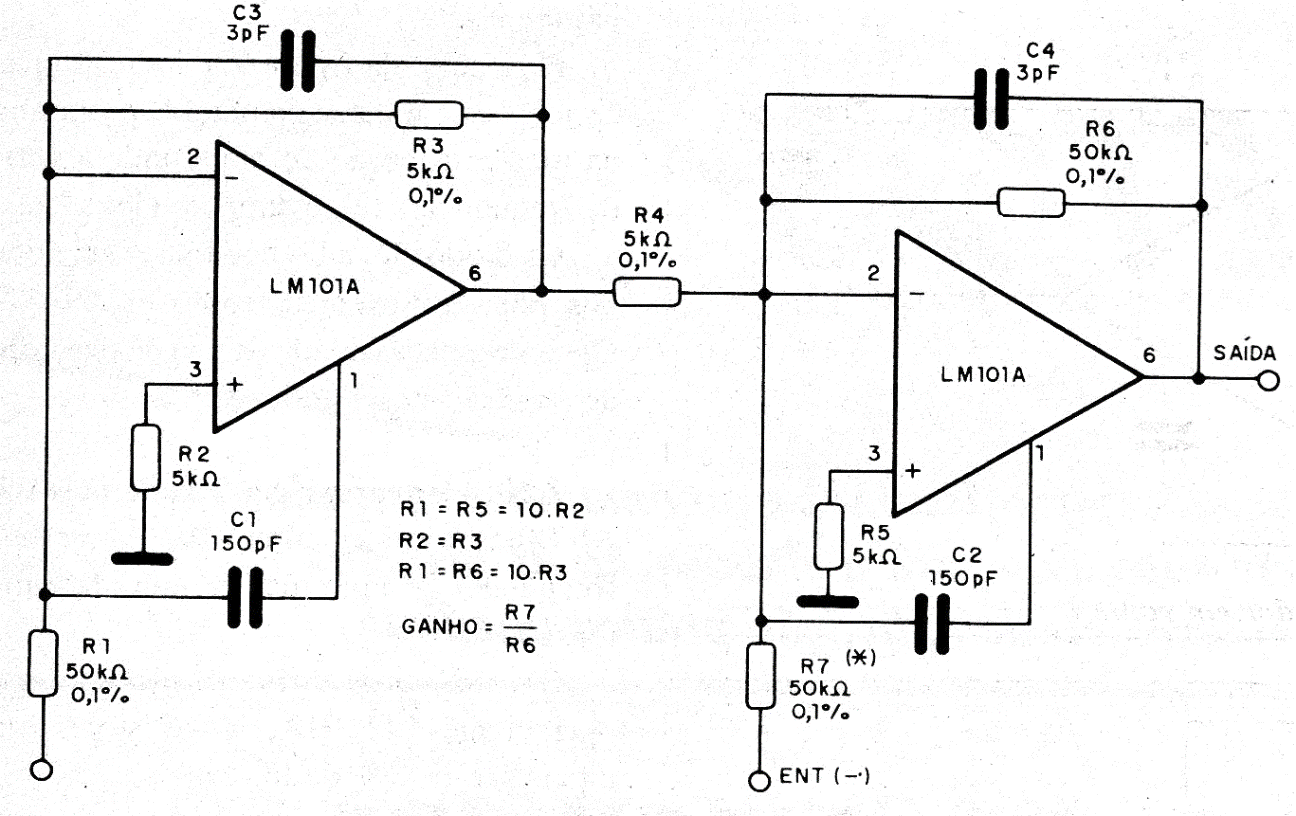

The gain of this amplifier is given by the components indicated in the formulas next to the diagram. The power supply must be symmetrical and equivalent operational amplifiers can be used.




| Clique na imagem para ampliar |
