Commercial Reflex Receiver (CB958E)

Details
Written by: Newton C. Braga

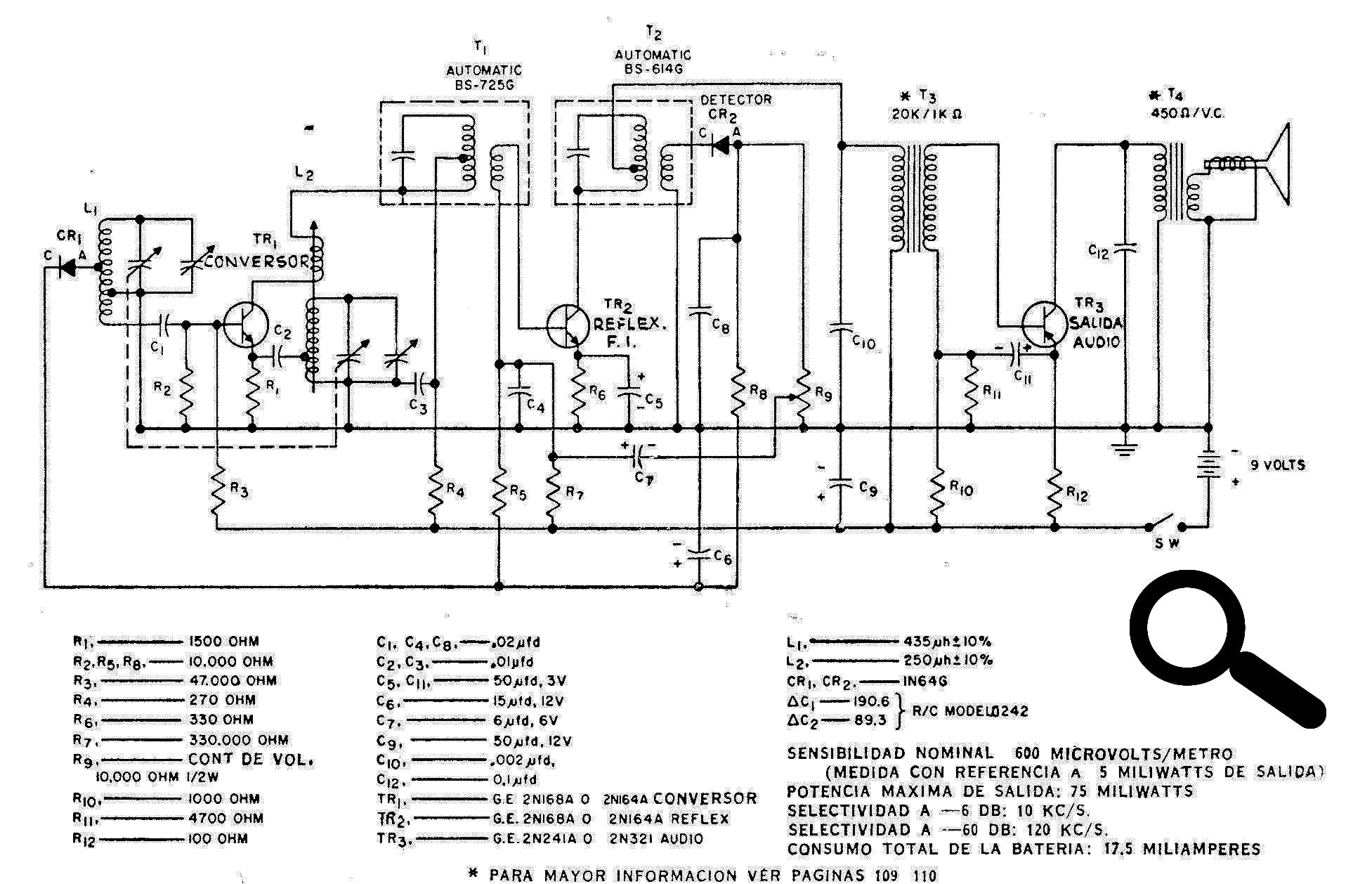

Only for reference this is a circuito f a commercial receiver of the year 1958. The circuit uses coils and transformers hadr to find in our days. The circuit is destinated to receive MW stations.
