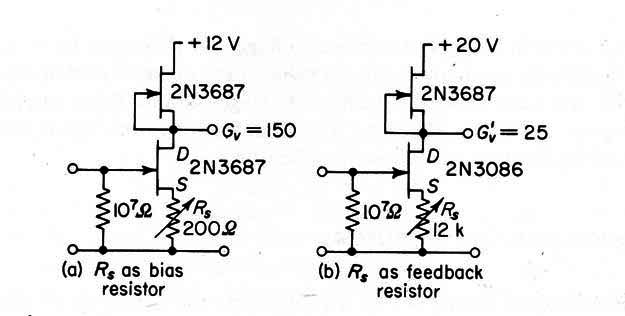

The circuits shown by figure below are simple stages using JFETs. The gain are 25 and 150 according the configuration and equivalent FETs can be used such as the MPF102 or BF245.
