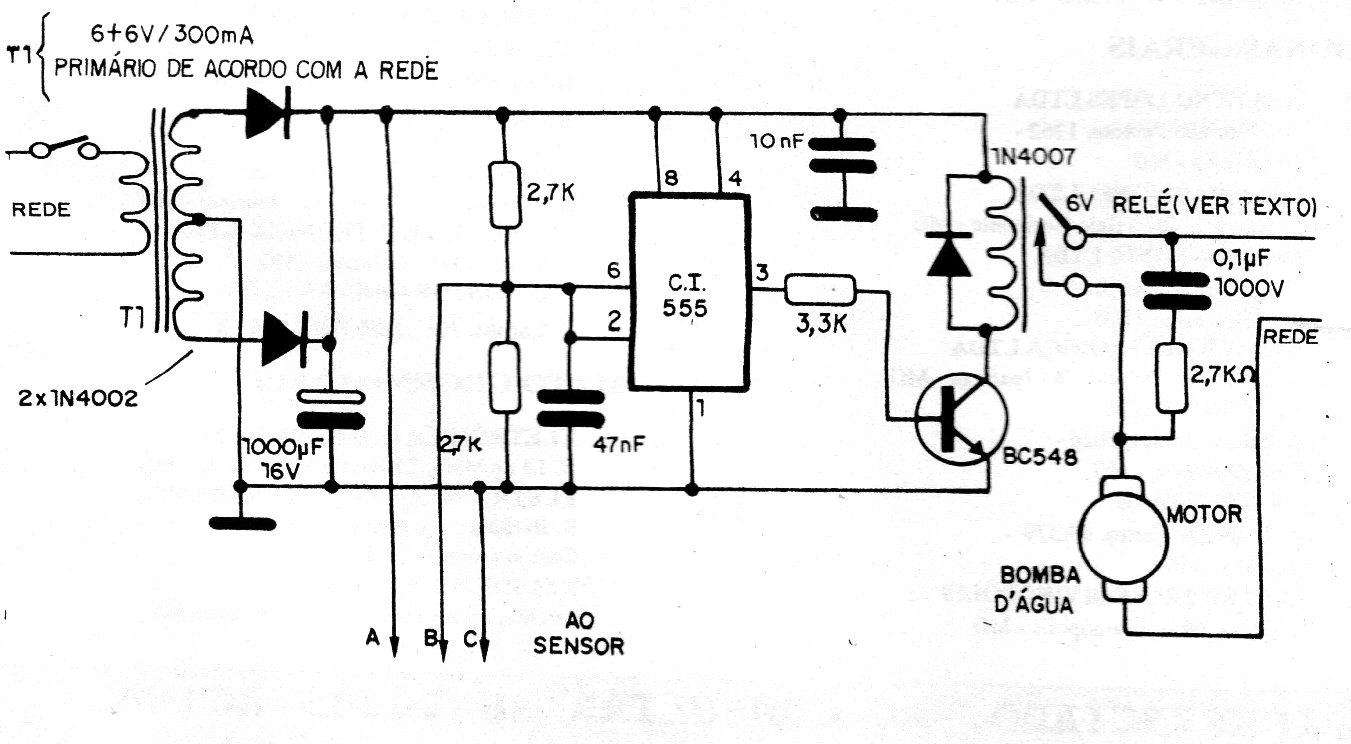

This circuit uses reed switches as sensors. We found it in a 1992 documentation. A float at a change of level has magnets attached so that they activate the reed-switches placed at different levels. The relay used must be able to withstand the pump current.
