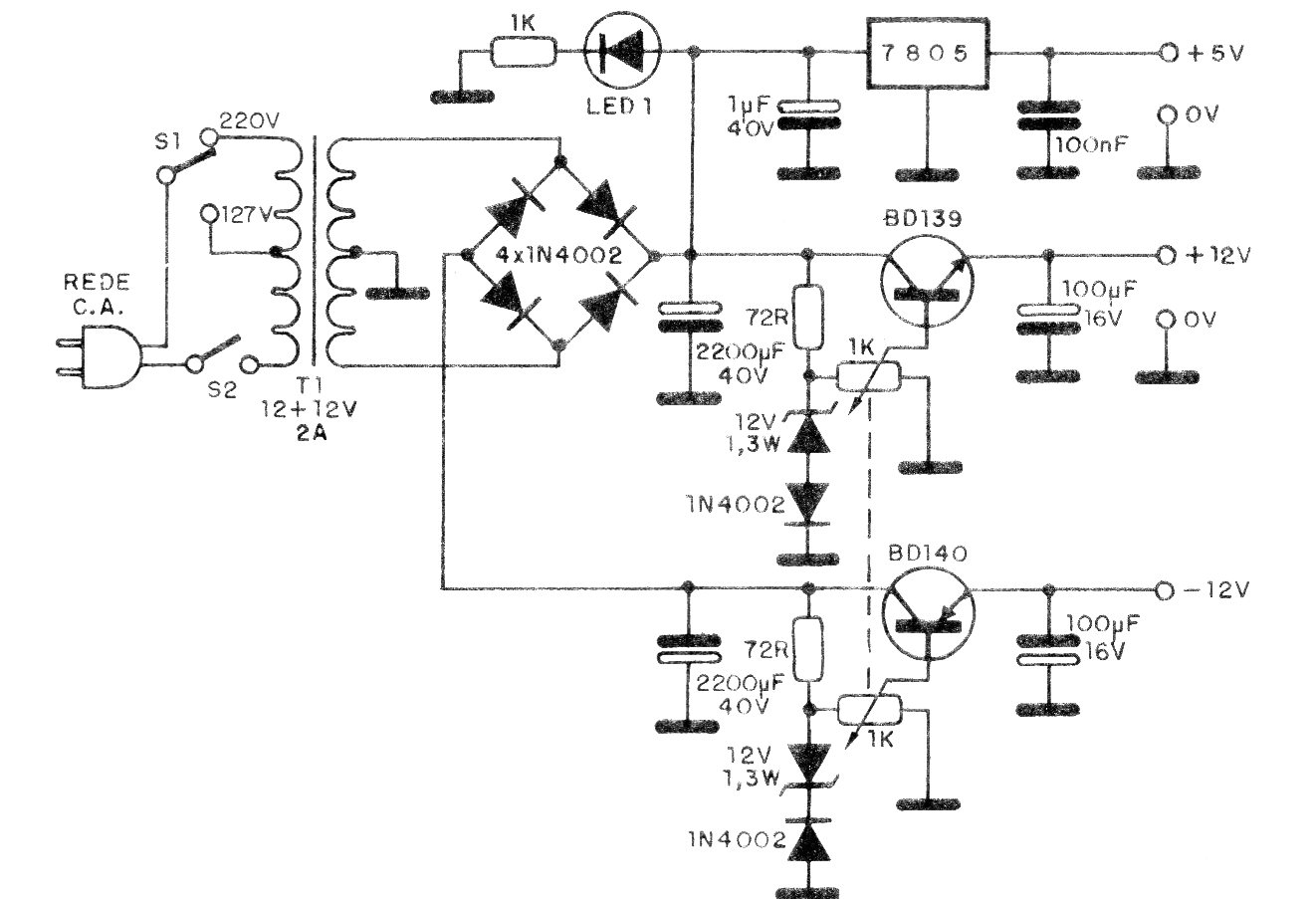

This traditionally configured power supply provides +12, -12 V and 5 V voltages for operating and logic power. The regulating integrated circuits and the transistor must be equipped with heat sinks. The transformer is from 1 A to 2 A.
