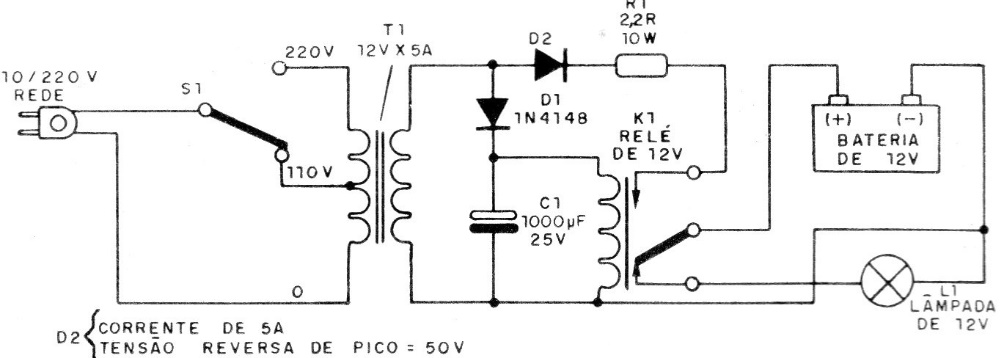

This simple emergency light circuit provides a battery charger system. Instead of the lamp, in a more modern version, LEDs can be used that have higher efficiency and consume less. The circuit can be used in either the 110 V or 220 V power grid.
| Clique na imagem para ampliar |
