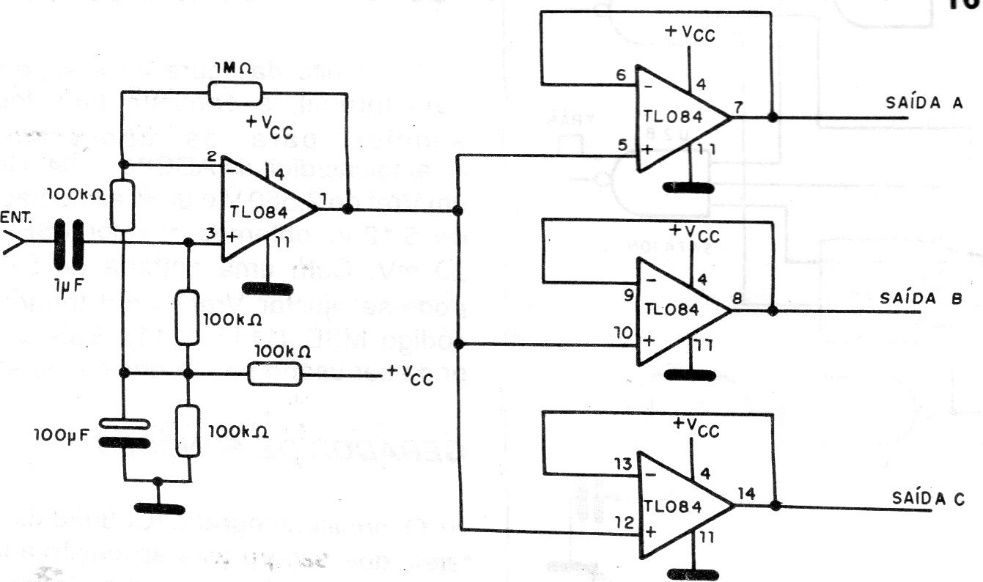

This version of the circuit shown appears in several practical applications on this site. The circuit shown is from 1992 and uses operational amplifiers from Texas Instruments. The input impedance is high, and the gain given by the 1M resistor in the first operation. The power source can be from 6 to 12 V.
