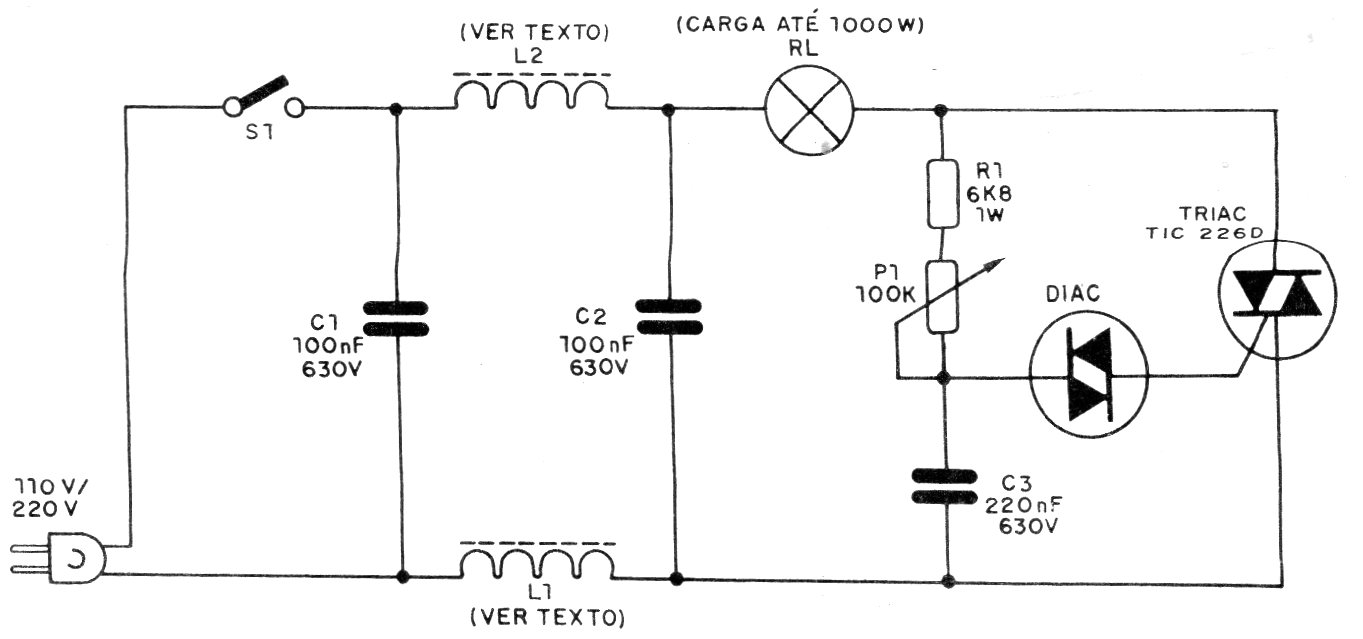

This traditional triac power control circuit can control loads up to 1000 W. The triac must be mounted on a good heat sink and the filter shocks consist of 40 turns of wire 14 or 16 on a ferrite rod. The filter capacitors are polyester for 600 V or more.
