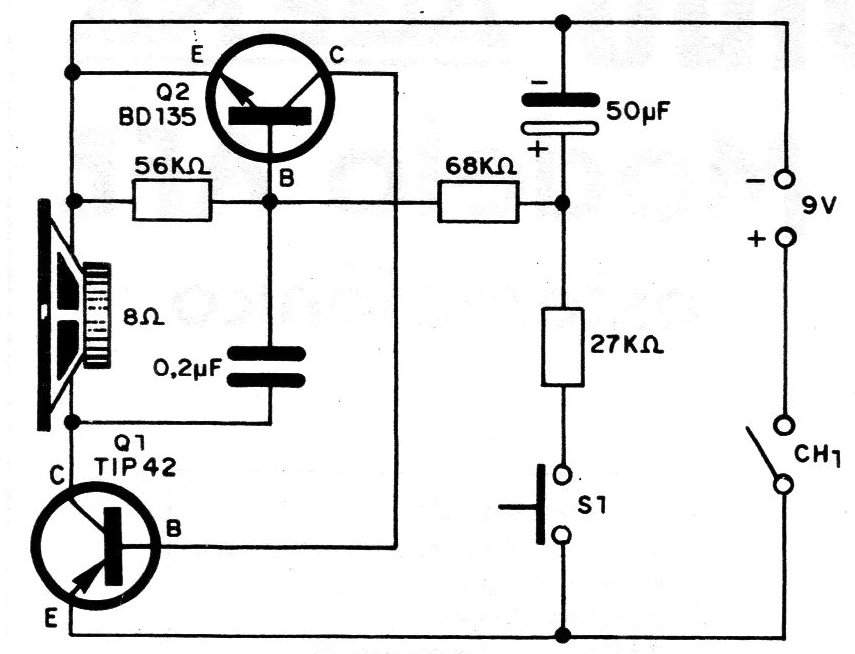

This 1980 documentation circuit uses two power transistors providing good power in a heavy speaker. The circuit can be powered with 9 V or even more. The TIP transistor must have a heat radiator and the frequency is determined by the 0.2 uF (220 nF) capacitor that can be changed.
