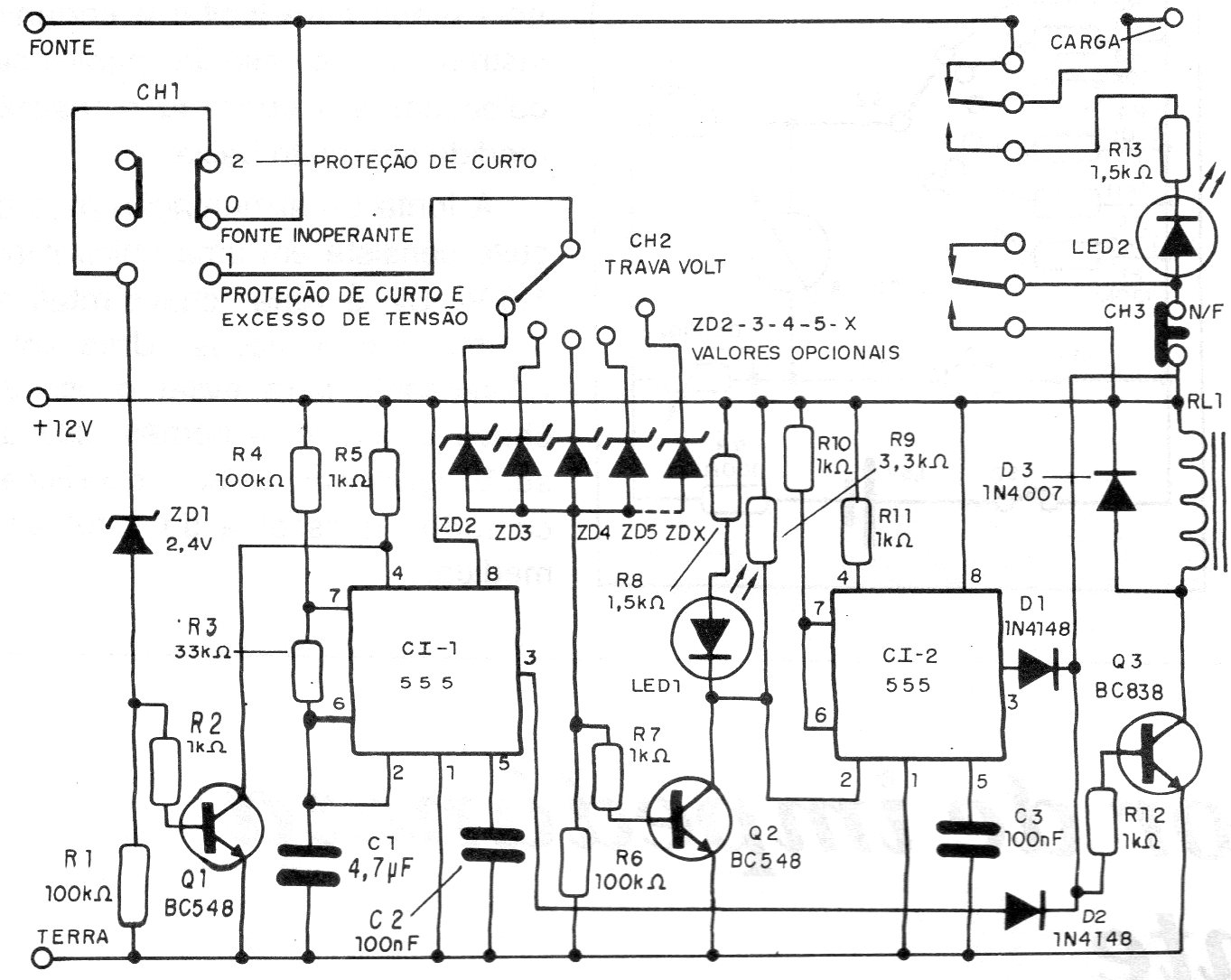

We found this protection circuit for the power supply in a 1992 documentation. This circuit has three operating modes and several zener diodes are used to determine the trip voltages. The circuit is independent of the maximum current of the source.
