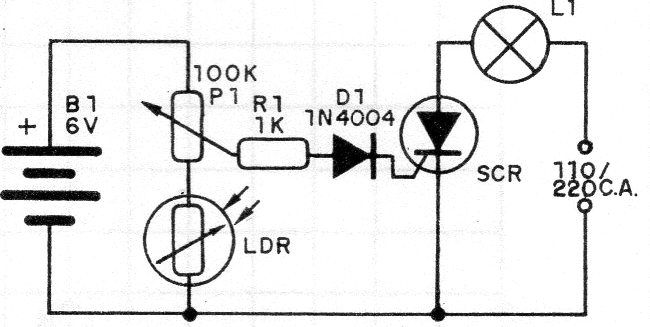

This simple circuit turns on a small lamp (or LED) when the light stops shining on the sensor for an instant. The sensitivity adjustment is made in the trimpot or potentiometer and the circuit is locked. Consider the voltage drop in the SCR if you supply the circuit with 6 V.
