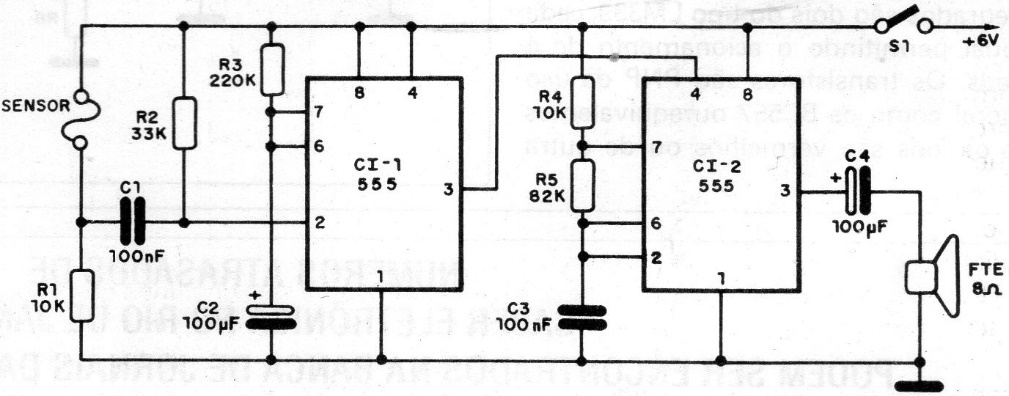

When the sensor of this circuit is cut for a moment, the second 555 produces a tone for a time that is basically determined by C2. A power stage can be added at the output and several sensors can be connected in series. Circuit consumption is low in the standby condition.
| Clique na imagem para ampliar |
