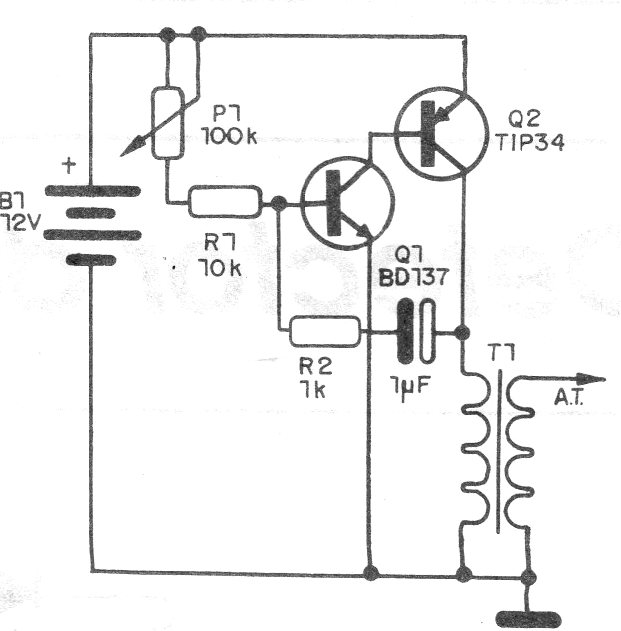

Using a motorcycle or car ignition coil, this simple circuit can generate a few tens of thousands of volts. The ideal operating point is set at P1. The power can come from a 12 V battery or source with at least 2 A. The TIP34 transistor must be mounted on a heatsink.
