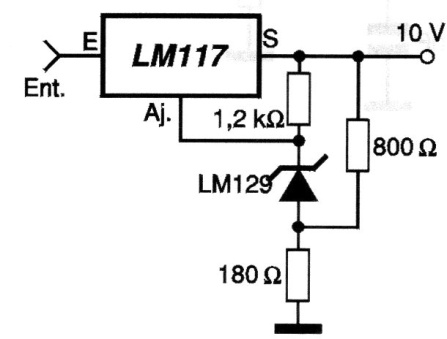

This circuit is from a National Semiconductor manual from the 90s, using an integrated regulator for 1.5 A that must be equipped with a heat sink. The precision zener is not a common component today.
10V Regulator (CB17574E)
