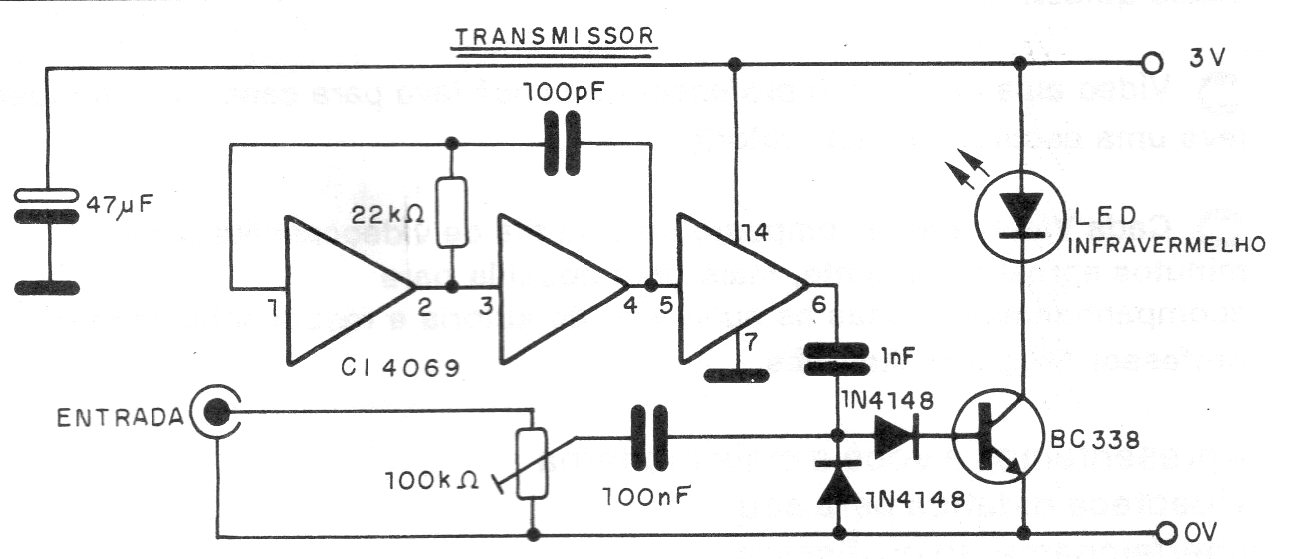

This circuit serves as the basis for an infrared audio link, using a remote sound for a wireless headset. The circuit has a good range if the emitter is installed in an opaque tube with a lens. The circuit is powered by a voltage of only 3 V but can be powered by 6 V if a higher power emitting LED is used.
| Clique na imagem para ampliar |
