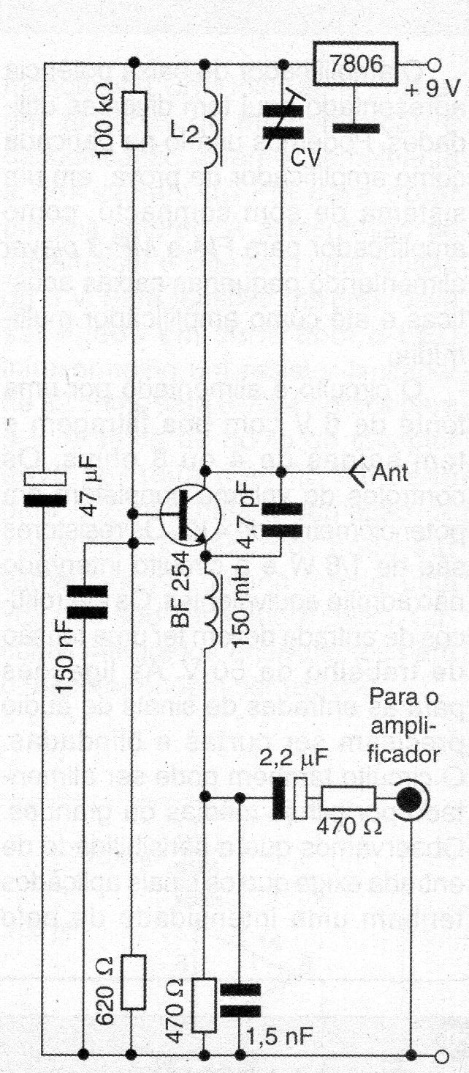

This circuit was originally indicated to receive the signals from CIR1178. However, it can be used to receive signals from any FM receiver. The coil consists of 4 turns of 24 or 26 threads in the form of 1 cm without core. The antenna is of the telescopic type and the power can also be made with 4 batteries, in addition to the indicated source.
