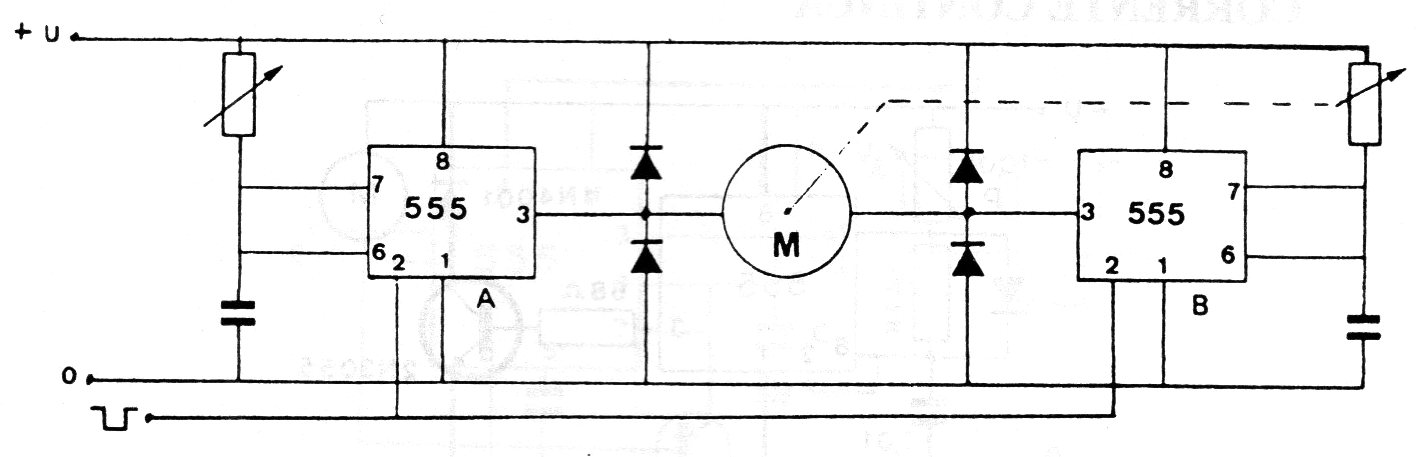

In the figure we have a circuit that uses two 555 to control the positioning of a servo motor. The potentiometer used depends on the type of motor and is mechanically coupled to the motor shaft. Potentiometers have typical values between 10k and 470k and capacitors between 47 nF and 470 nF.
