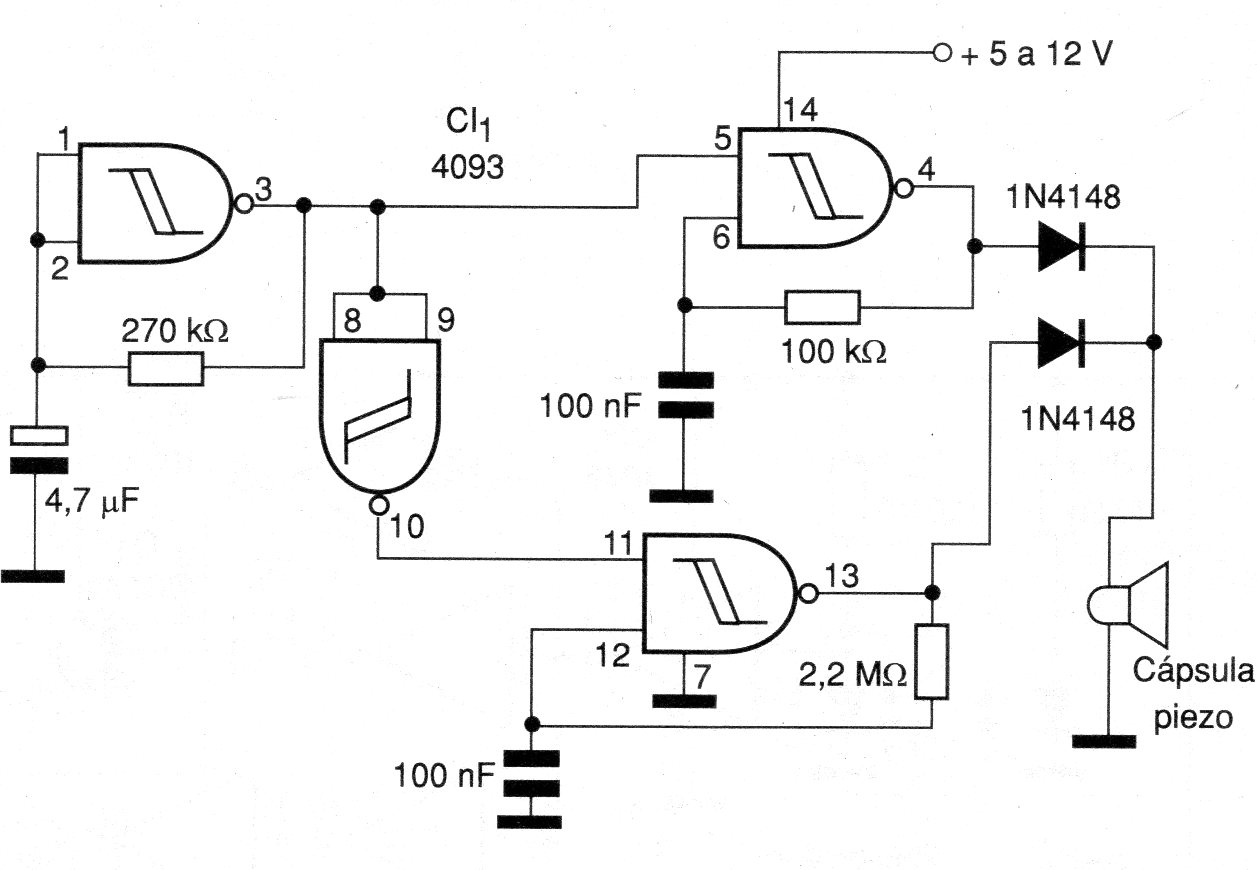

This mini siren, found in a 2003 publication, powers a small piezoelectric transducer, but a higher power stage with a speaker can be included. The sound depends on the capacitors that can be changed, and the power is supplied by voltages from 5 to 12 V.
