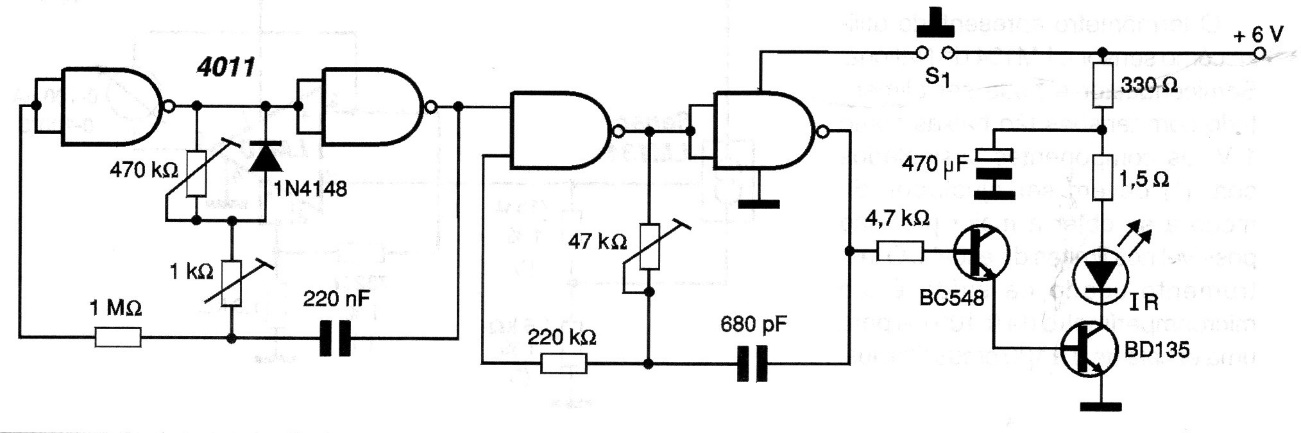

This CMOS circuit with the 4011 can be used in an infrared remote control. The circuit can be powered by voltages from 5 to 12 V and the adjustment of the intermittent signal is made in the trimpots. The power is of the order of 80 mW and emitting diodes of different types can be tested.
| Clique na imagem para ampliar |
