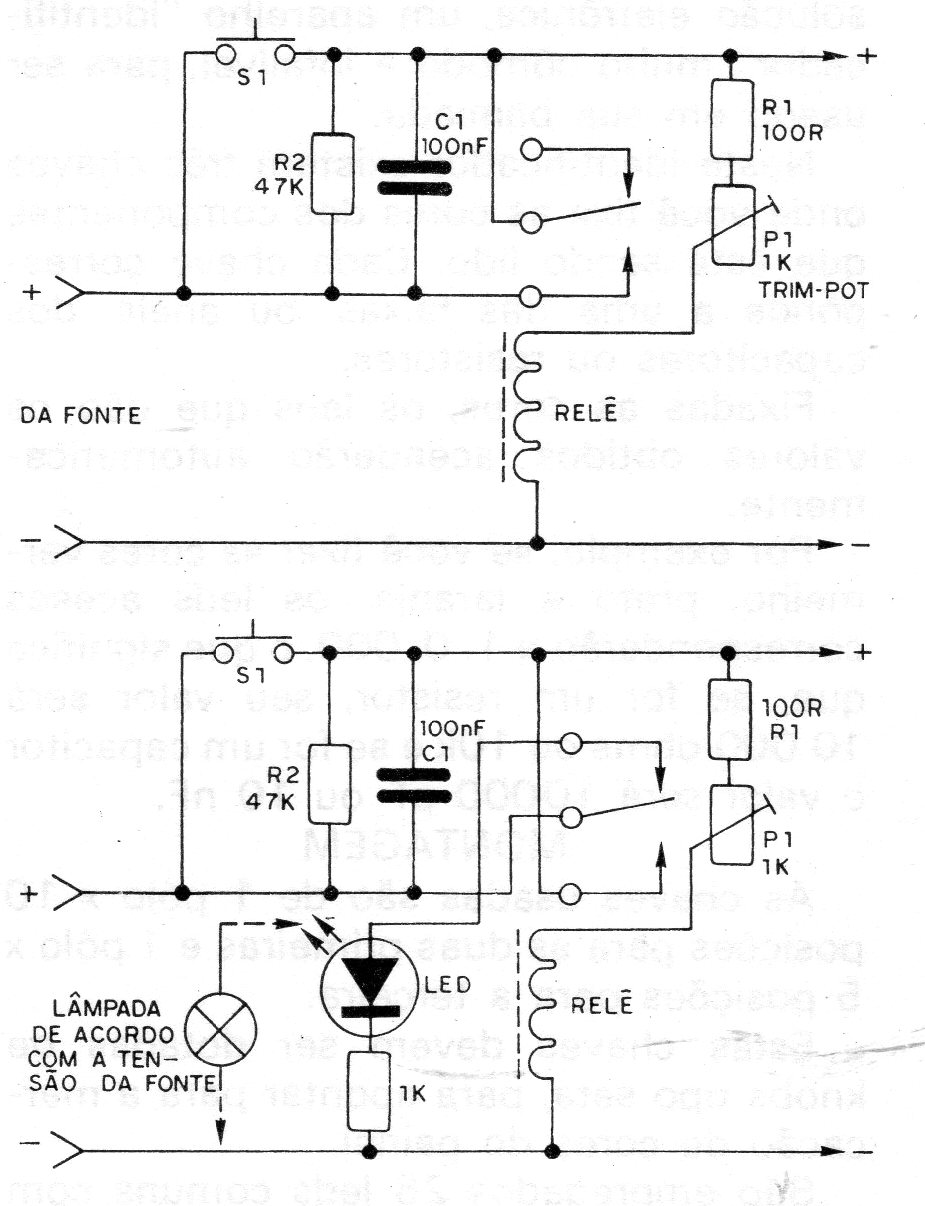

This relatively simple protection circuit trips a source in the event of a short. The additional circuit has an LED or drive indicator lamp. The circuit must have a relay according to the voltage of the power supply it must protect.
| Clique na imagem para ampliar |
