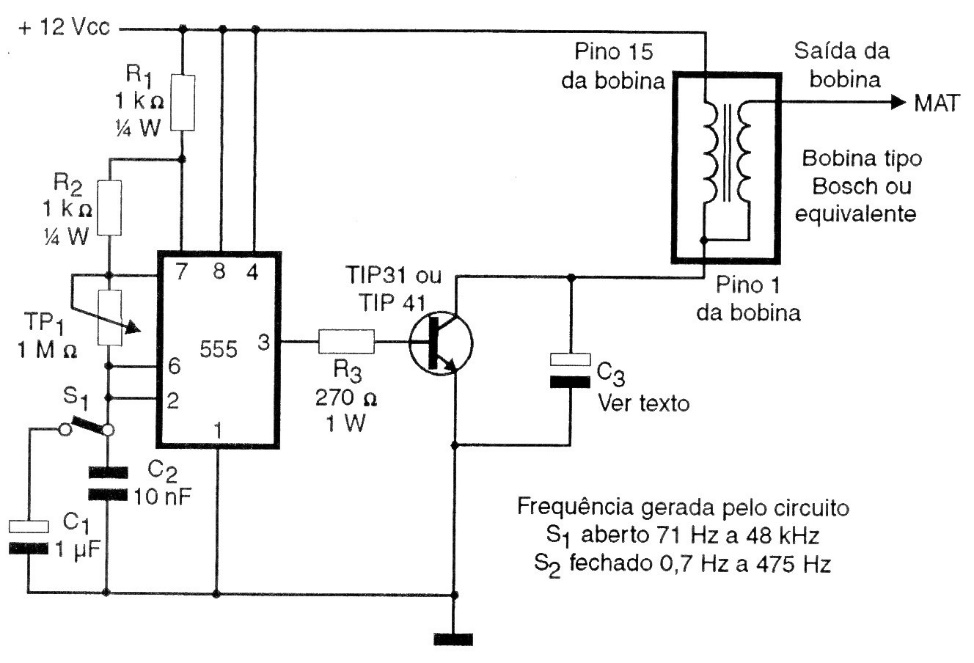

This very high voltage generator (VHV) uses a 555 and a power transistor with a heat sink. The circuit is from 1997, but still current, for using common components. The high voltage transformer is nothing more than an automobile ignition coil.
| Clique na imagem para ampliar |
