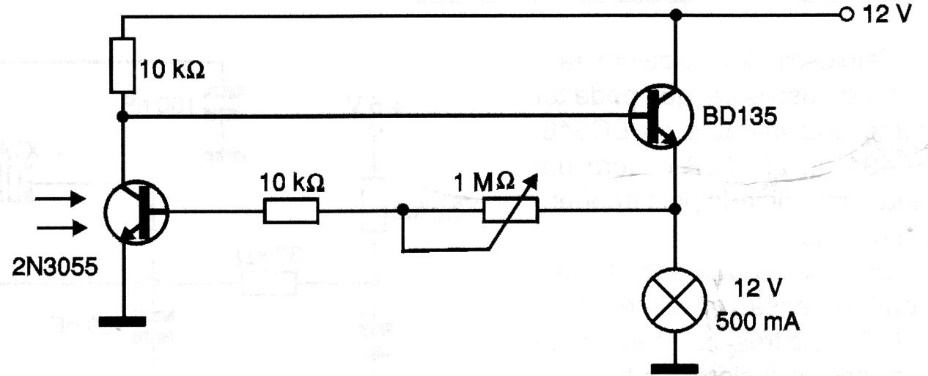

This circuit activates an incandescent lamp (or LEDs) when the light stops hitting the sensor, which is a phototransistor or even a 2N3055 without the housing. The sensitivity adjustment is made in the trimpot and the supply is made with 12 V.
