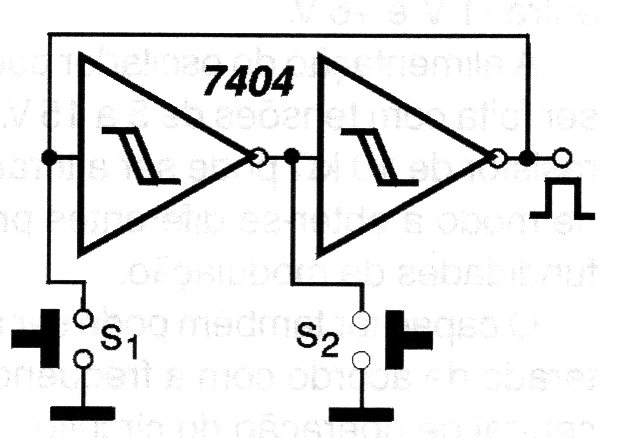

Debouncer Circuit CIR11540S CB17572E (CB17572E)

This debouncer circuit was found in a 2001 documentation, serving as an input shield for microcontrollers. The supply must be made with 5 V.
