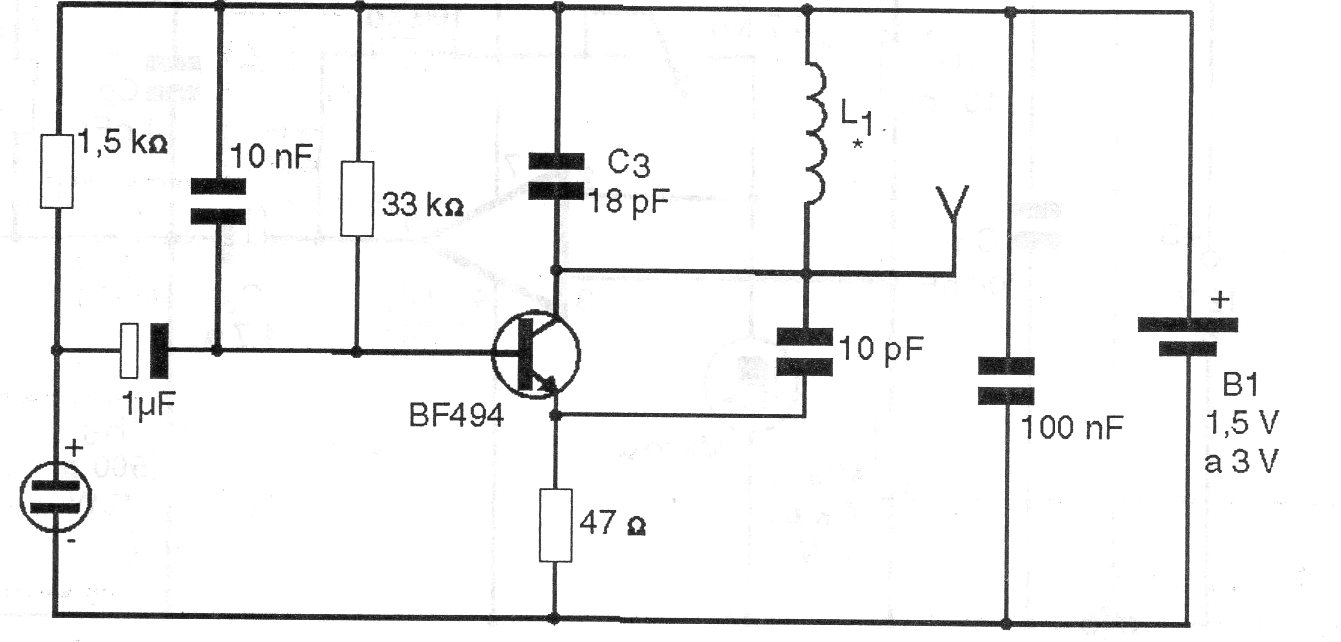

This is a conventional FM micro transmitter circuit already used several times on this site. The frequency adjustment is done by tightening or loosening the coil turns. It consists of 4 turns of AWG 22 or 24 wire air core and 1 cm in diameter.
