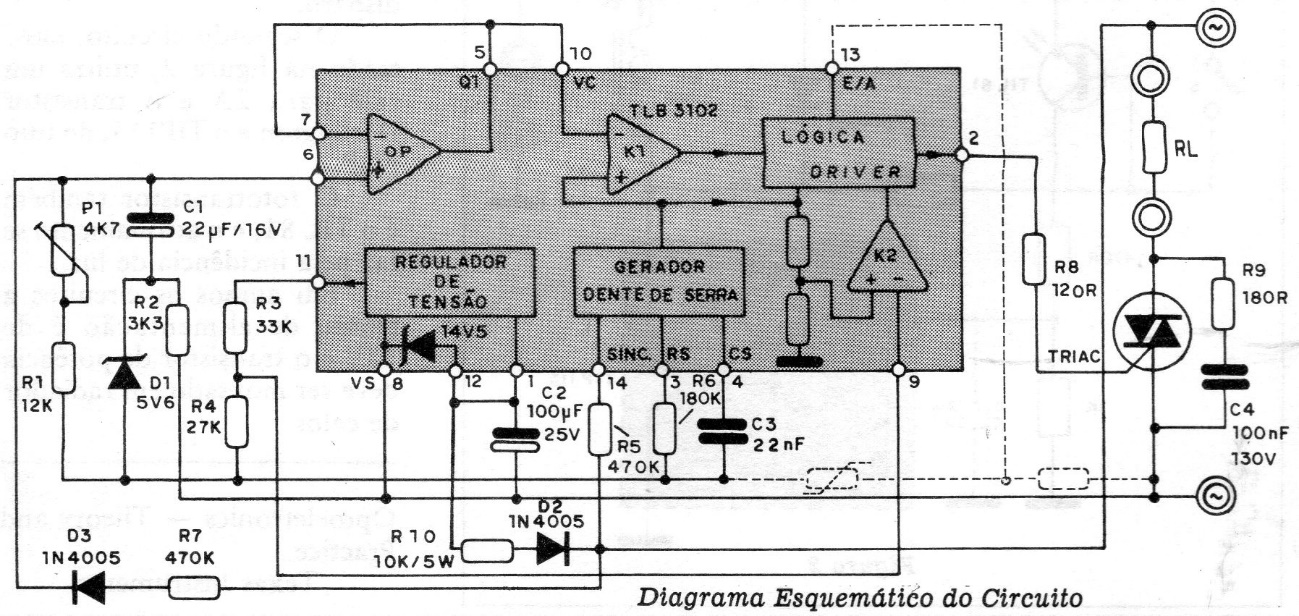

The integrated circuit, in this 1986 application, is not a very common component today. The circuit switches the load voltage from 110 V to 220 V or vice versa. The triac must have a heat sink and current according to the controlled load, which should preferably be resistive.
| Clique na imagem para ampliar |
