Portable Radio as Test Amplifier (CB17436E)

Details
Written by: Newton C. Braga

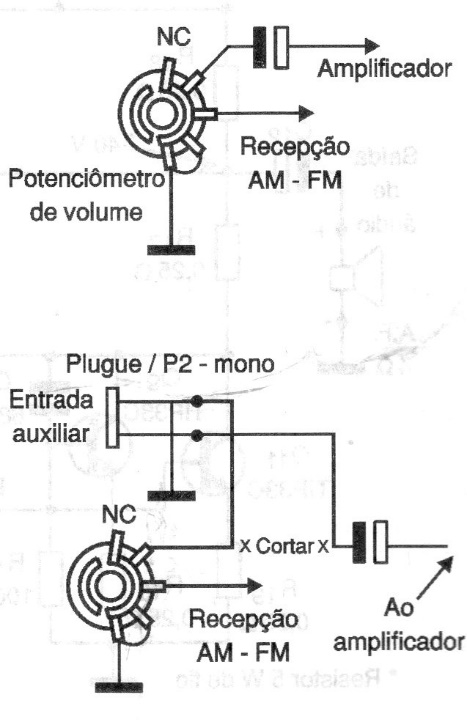

In the figure we show how to use an old portable AM or FM radio as a test amplifier or signal follower. A test input is added, being connected to the volume control potentiometer.
