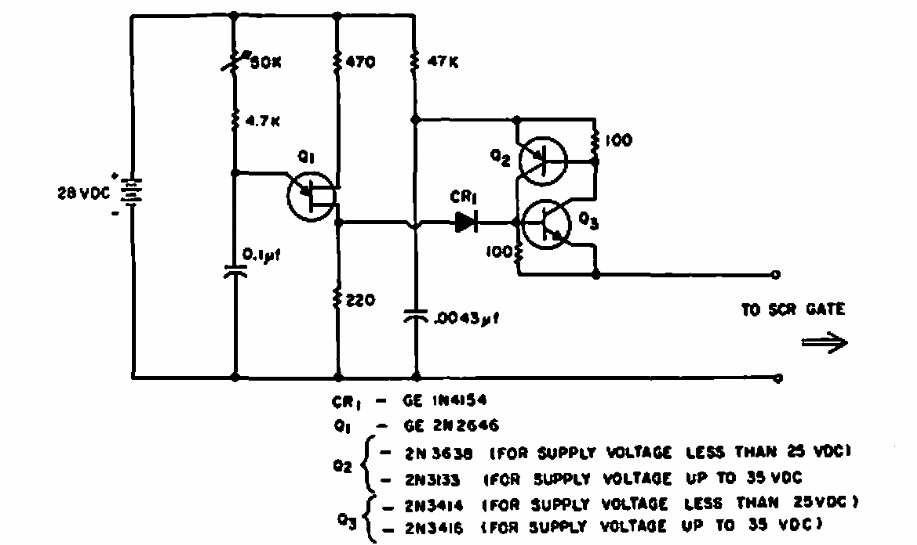

In this circuit we have the way to use two transistors as a regenerative pair simulating an SCR. The circuit is from a 1965 General Electric documentation.
| Clique na imagem para ampliar |
Regenerative transistors as SCR (CB21474E)
- Details
- Written by: Newton C. Braga
