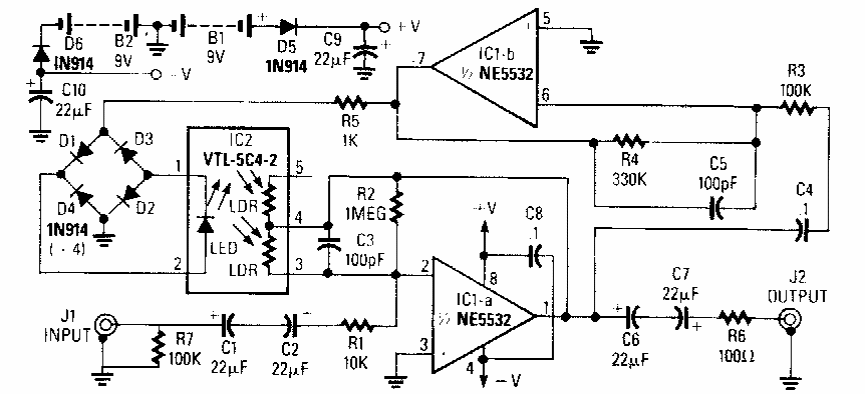

Audio limiter (CB21068E)

Details
Written by: Newton C. Braga



This circuit was obtained from a Radio Electronics from the 90's. The circuit limits the strength of an audio signal preventing saturation. Equivalent operational amplifiers can be tried.
