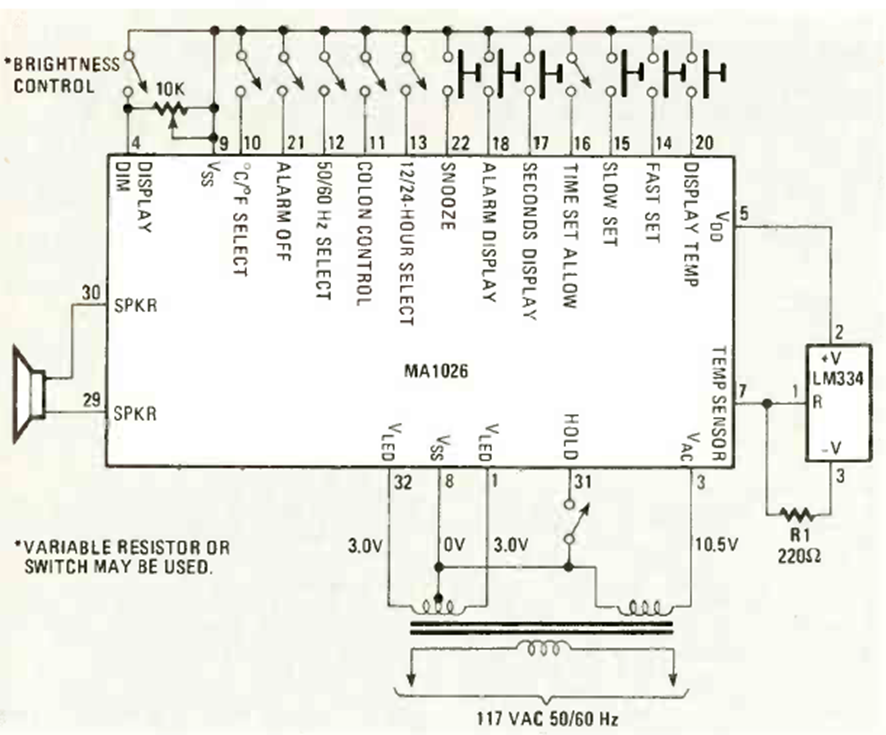

This improvement of the MA1026 digital clock and thermometer, improved over the previous two circuits, is from the same Radio Electronics magazine from February 1981. The circuit has a transformer with special voltages.
| Clique na imagem para ampliar |
